Panorama buses have several types of door release mechanisms and possible locations on the bus that you might find the mechanisms.
Use the reference below to familiarise yourself with the possible door release mechanisms and their locations.

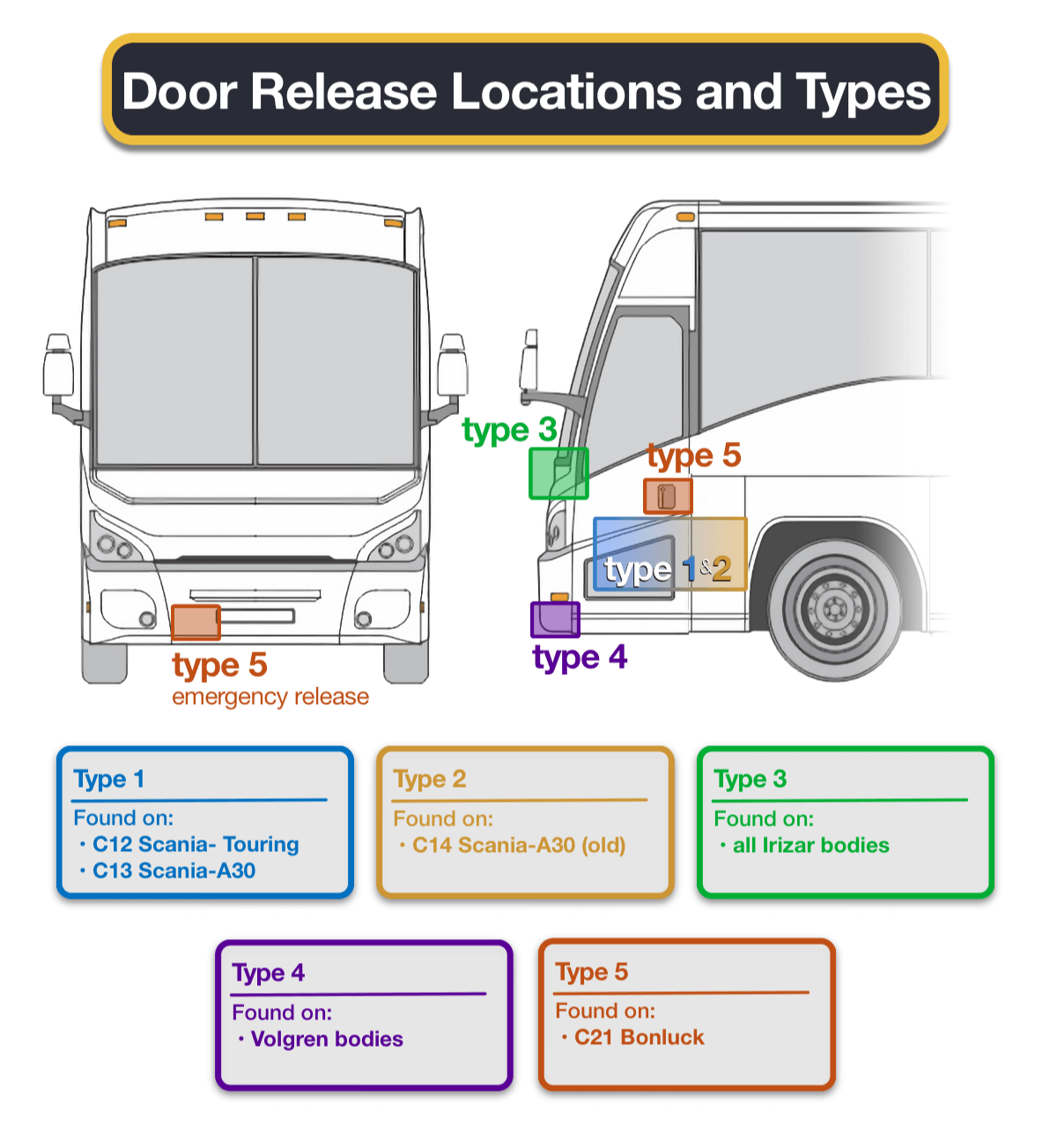

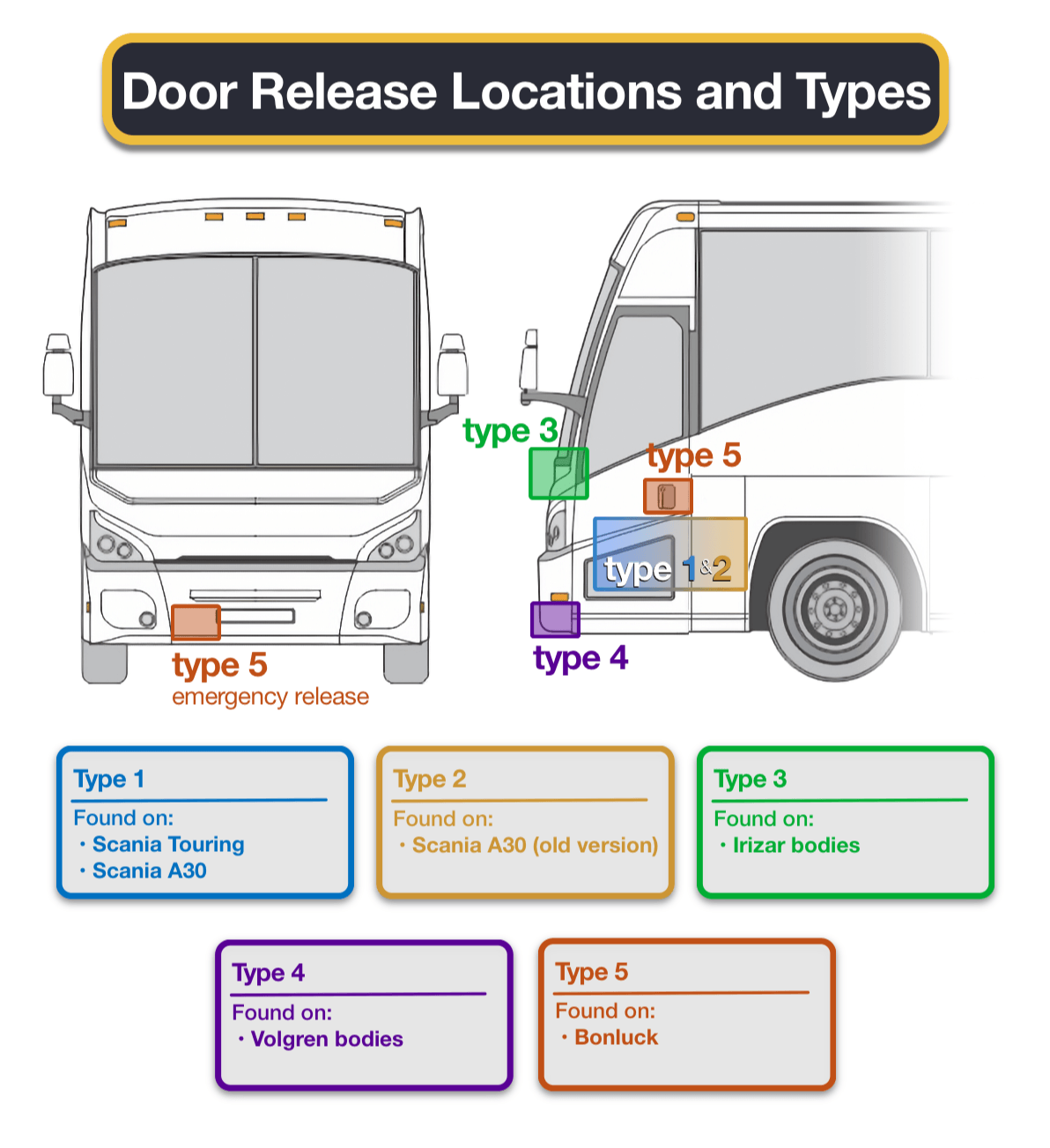

Mechanism Locations and Types
Mechanism Operation
Type 1
Models:
C12 Scania-TouringC13 Scania-A30This type is a pressurised door, with two types of operation – one for standard opening and one for emergency opening

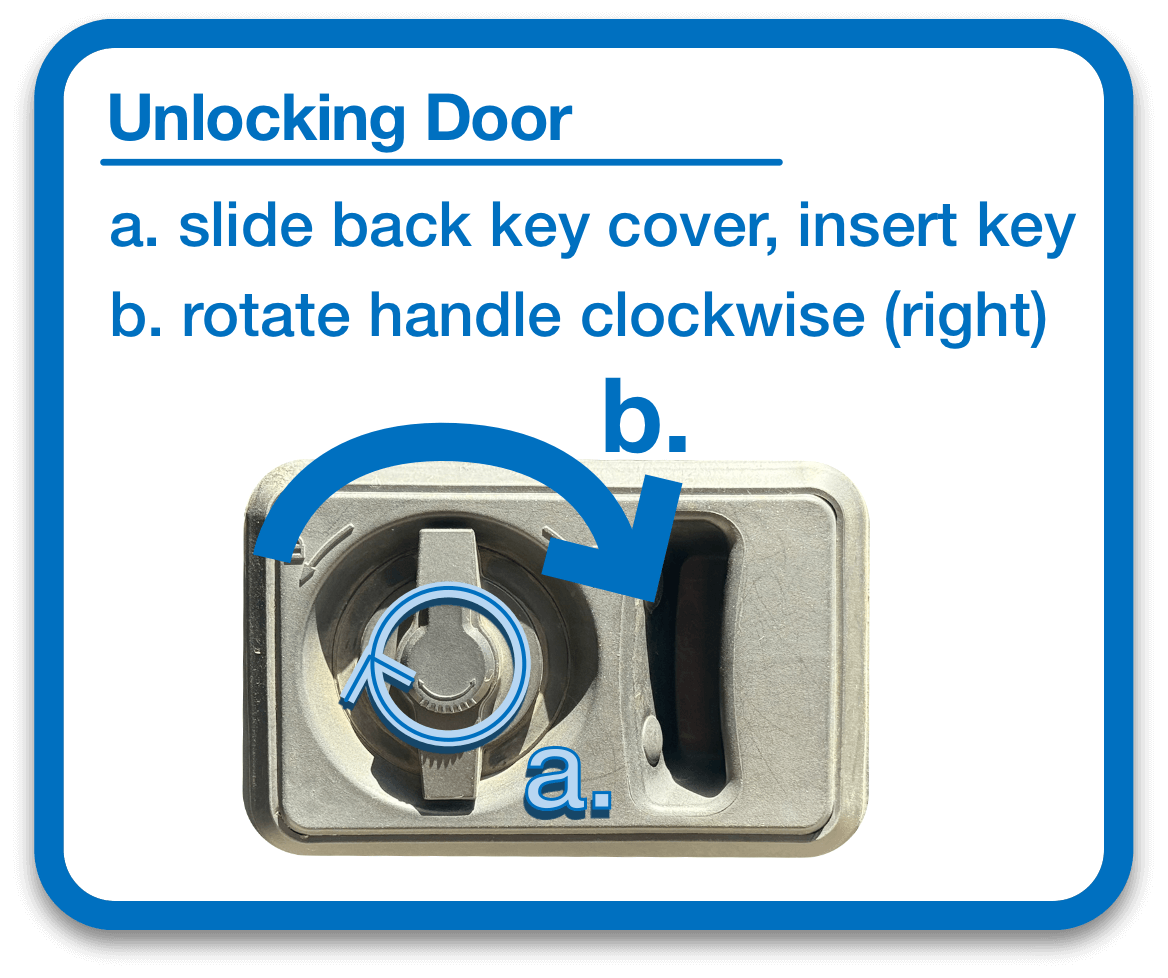

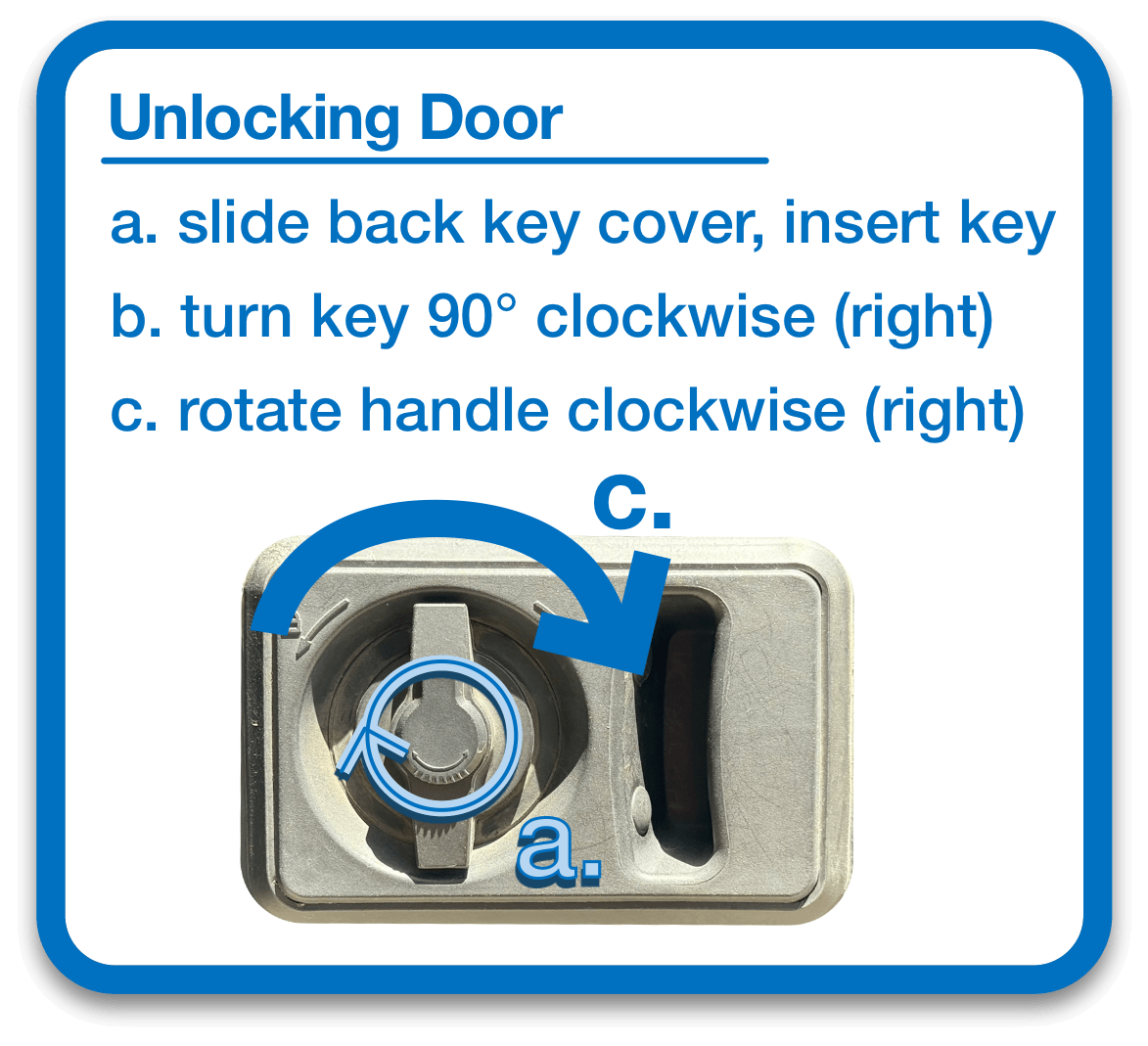

Unlocking Door (if locked)
slide back key cover, Insert key and turn clockwise (right) 90°Rotate handle clockwise (right) 90°

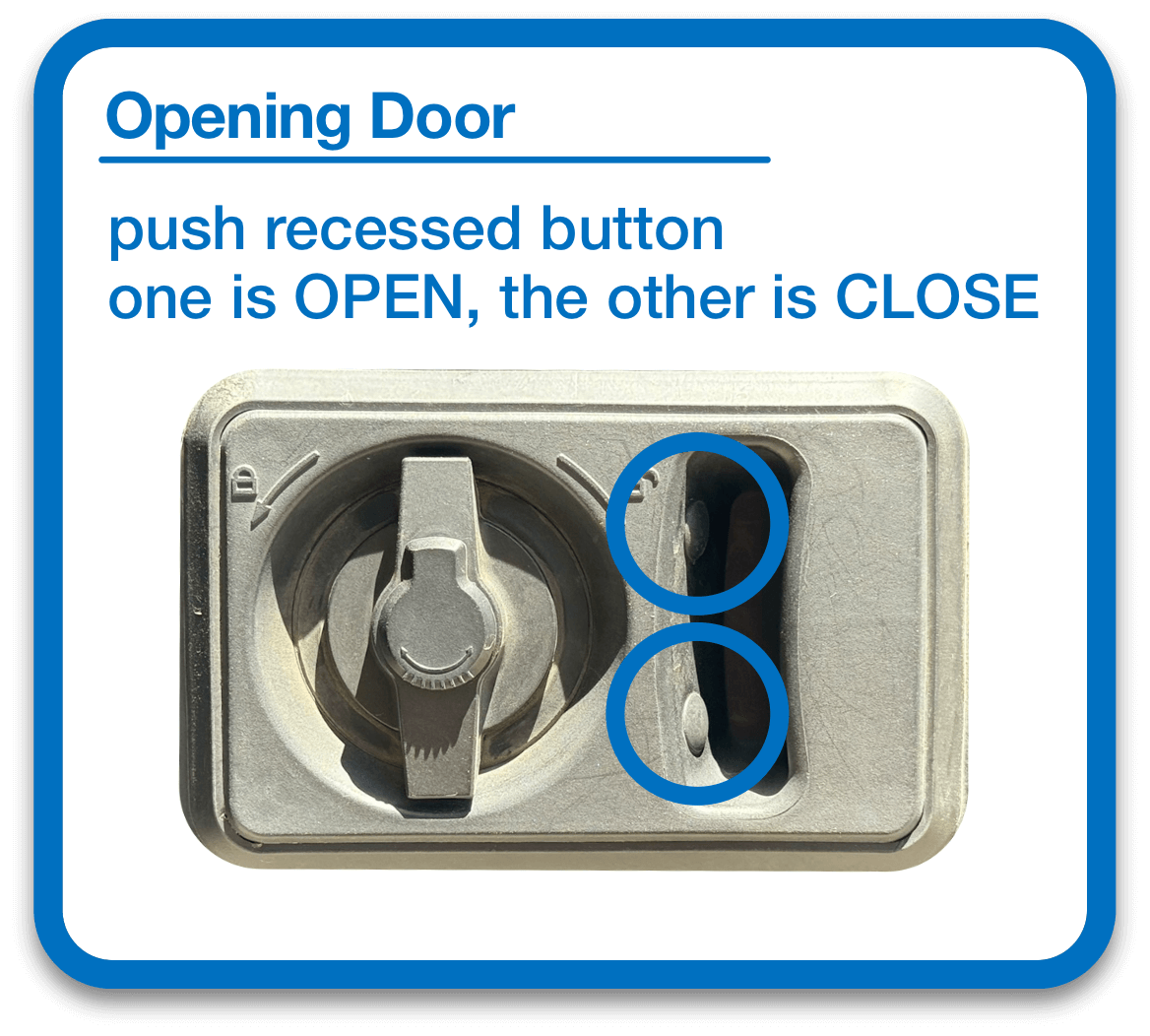

Standard Opening (pressurised)
Push small recessed button to open door

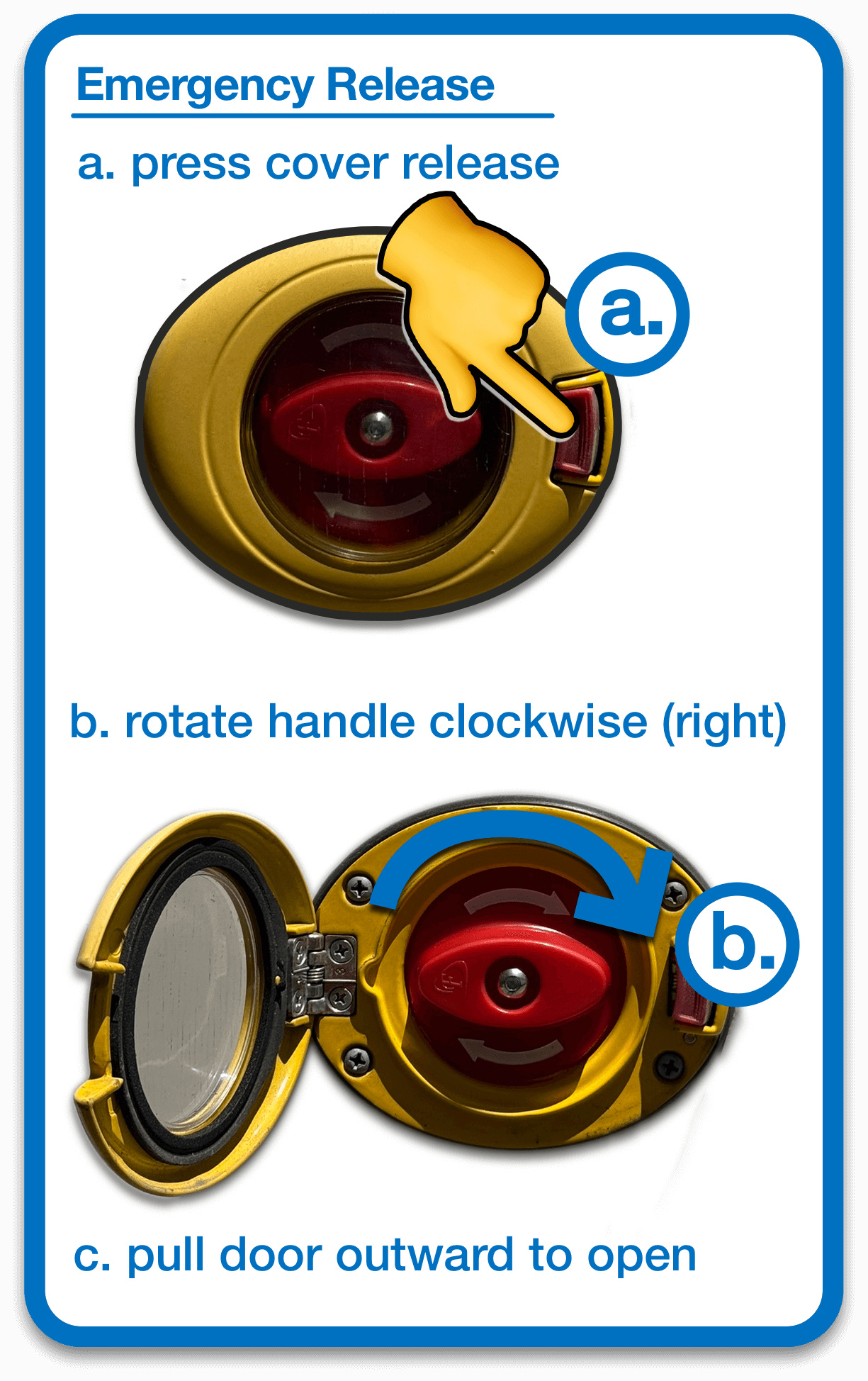

Emergency Opening
Press cover releaseRotate red knob clockwise (right)Pull the door outwards to open
Because this disables the pressurisation and the door will have to be pulled opened manually.
Type 2
Model:

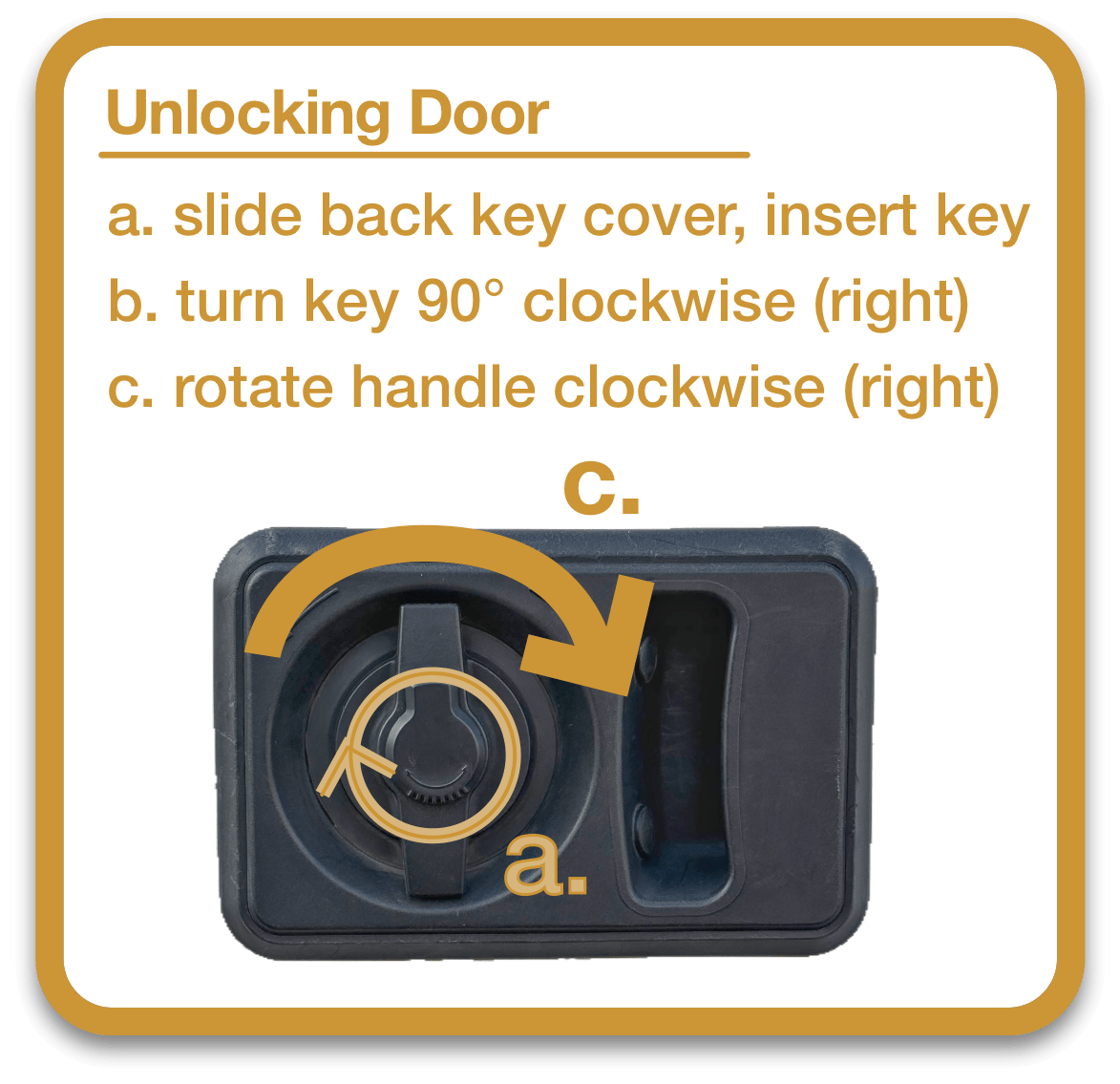

C14 Scania-A30 (older body type)Unlocking Door (if locked)

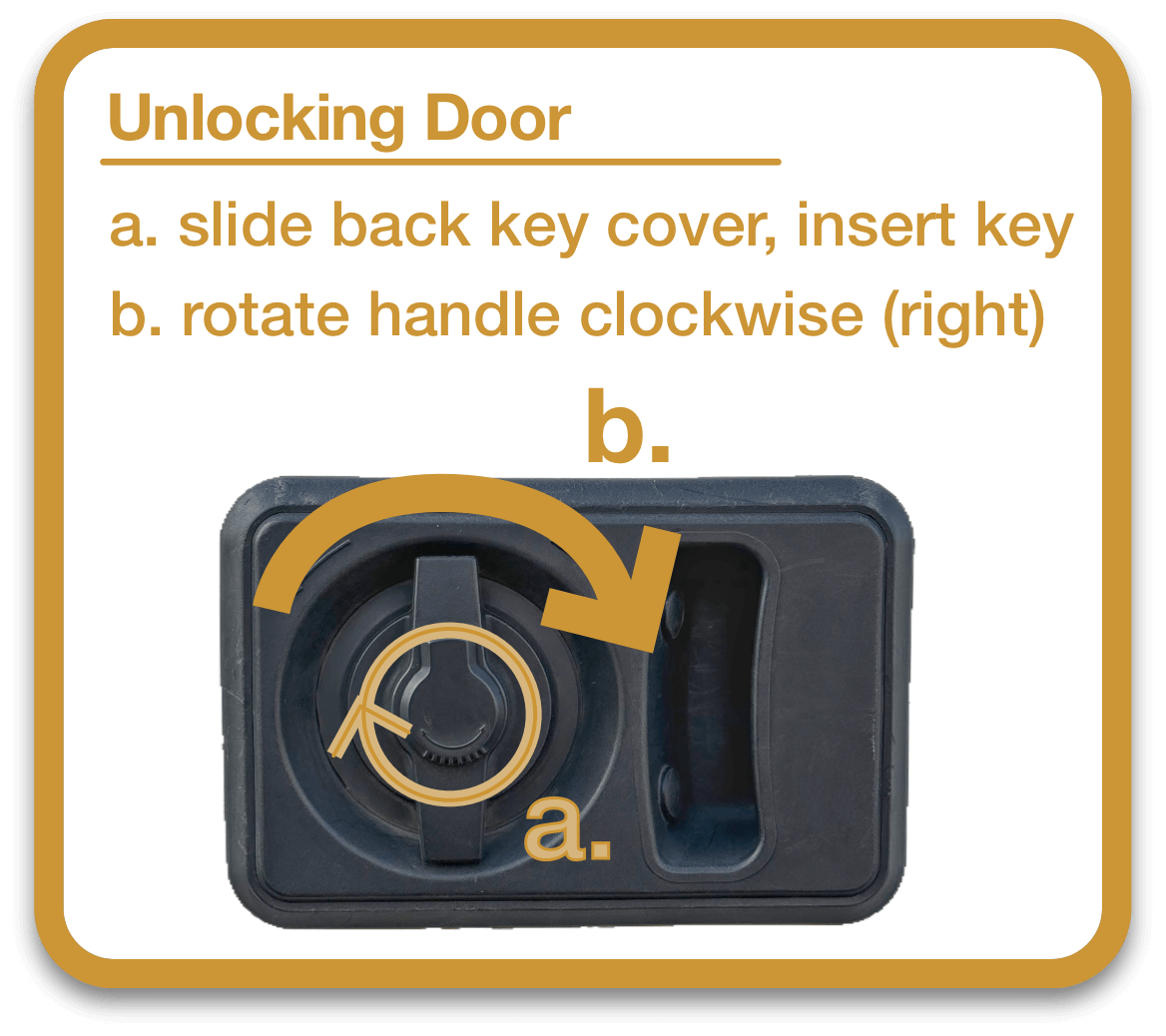

slide back key cover, Insert key and turn clockwise (right) 90°Rotate handle clockwise (right) 90°
Opening Door

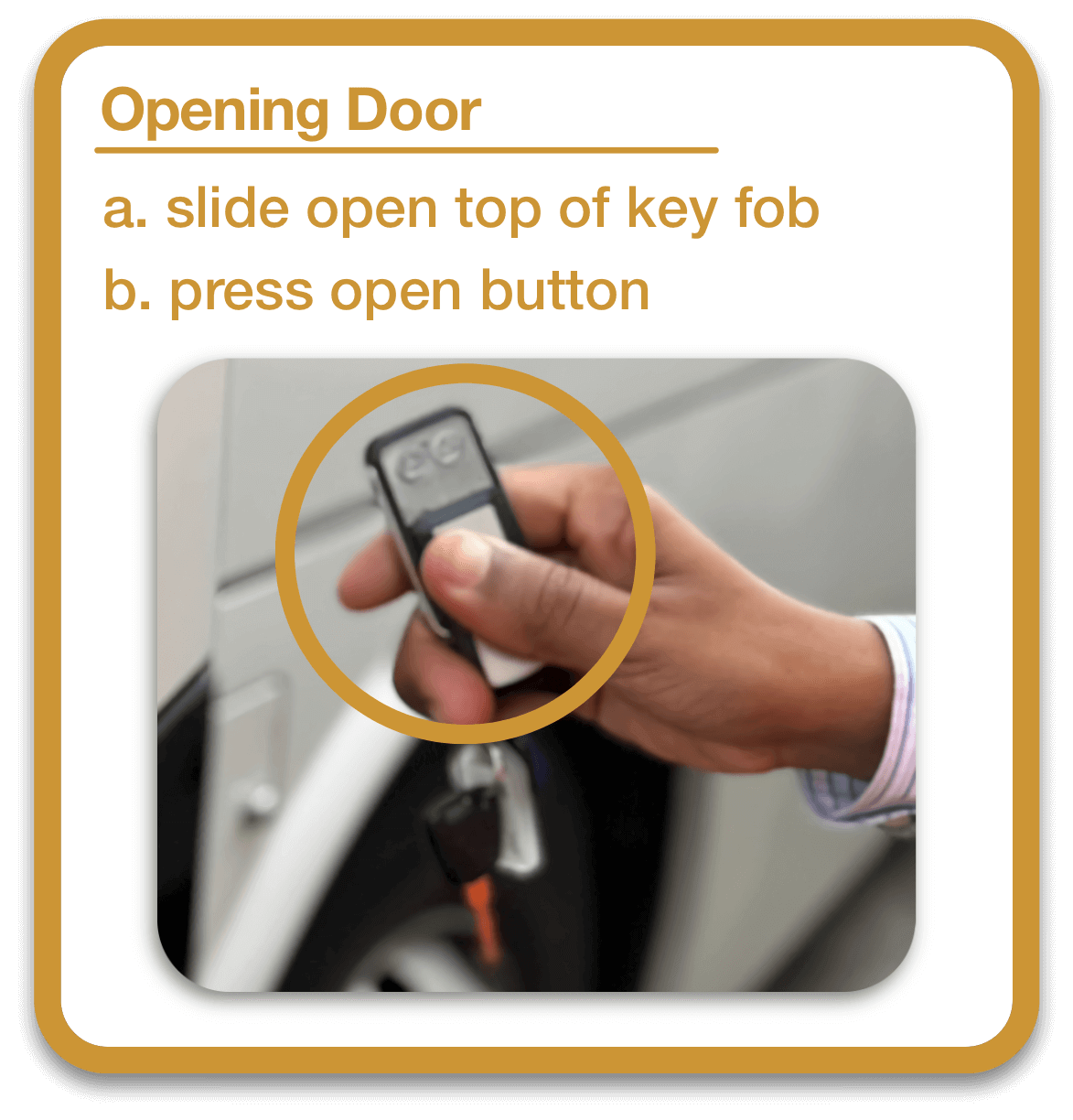

Use key fob remote on keyring.
Slide open top of key fobPress open button

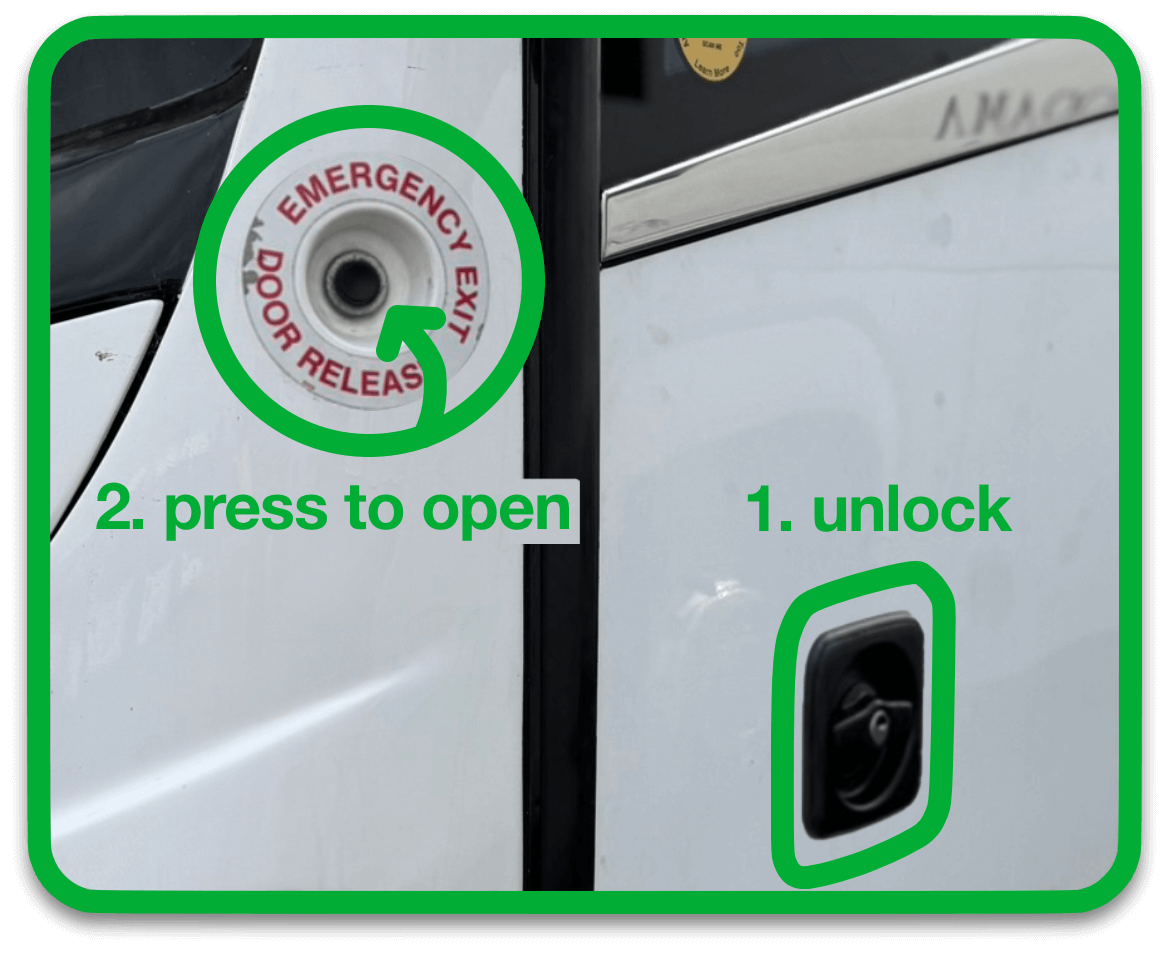

Type 3
Models:
All Irizar bodies1. Unlocking Door (if locked)
Insert key and turn clockwise 90°Rotate handle clockwise 90°2. Opening Door
Press button to the left of the door
(with “emergency exit, door release” printed around it)
Type 4
Models:
Most Volgren bodies1. Unlocking Door (if locked)

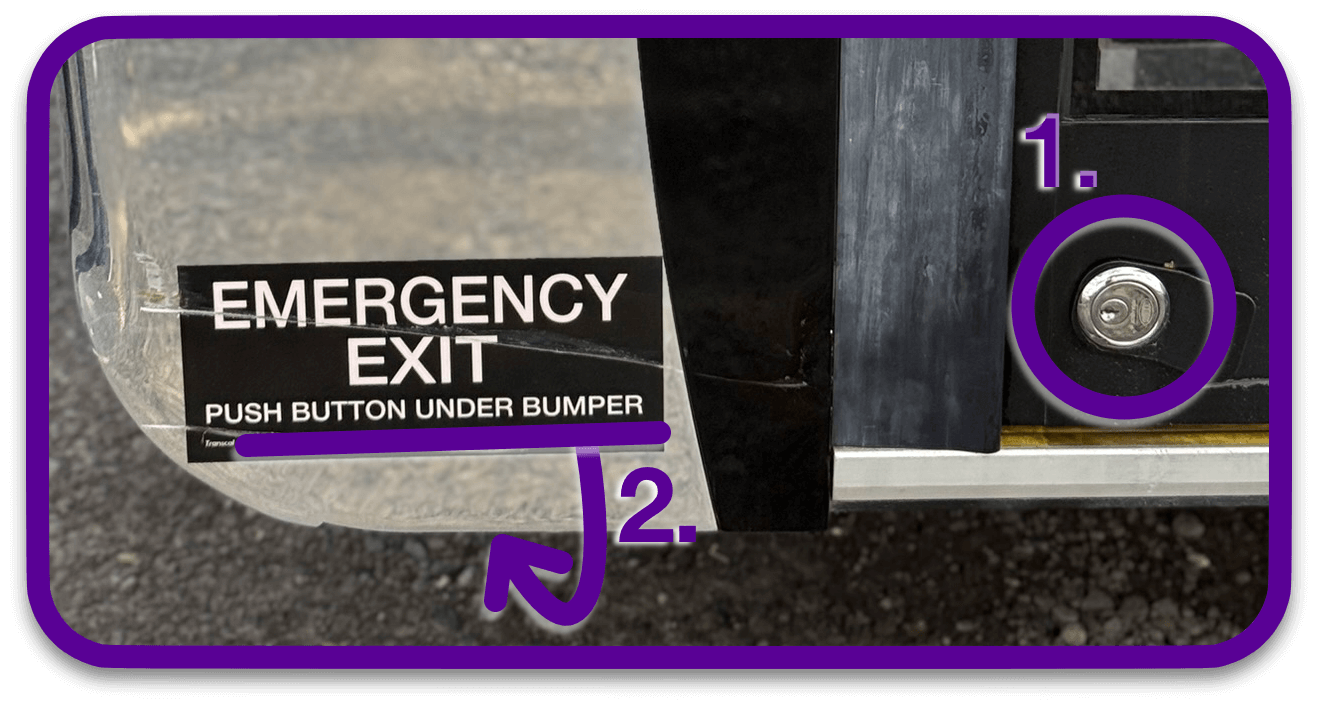

Locate keyhole in the bottom left corner of the front door.Insert key and rotate clockwise until it stops.2. Opening Door
The open and close buttons are under the front bumper, below the Emergency Exit sticker.Locate button with your finger and press.
Type 5
Model:

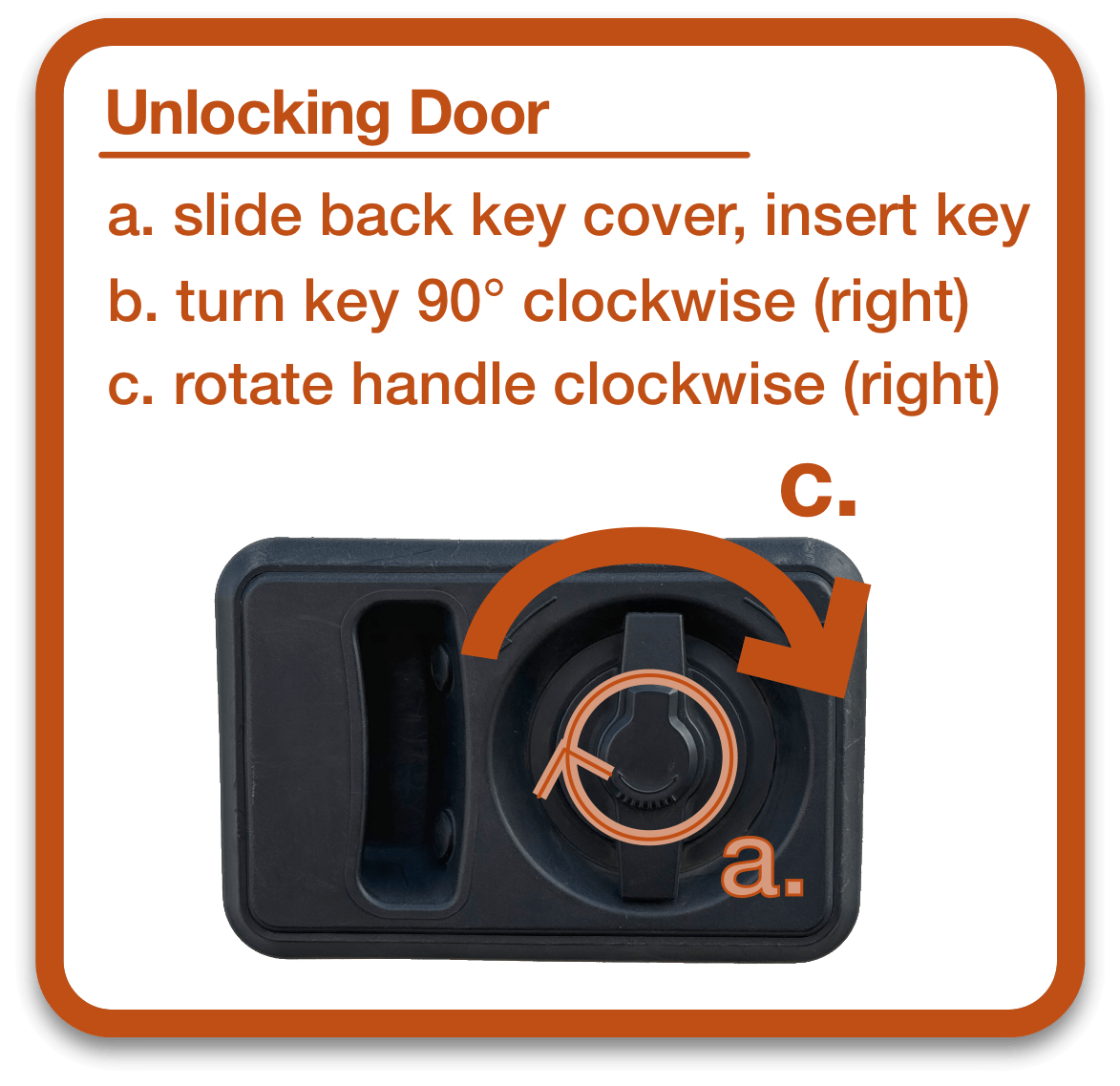

C21 BonluckUnlocking Door (if locked)

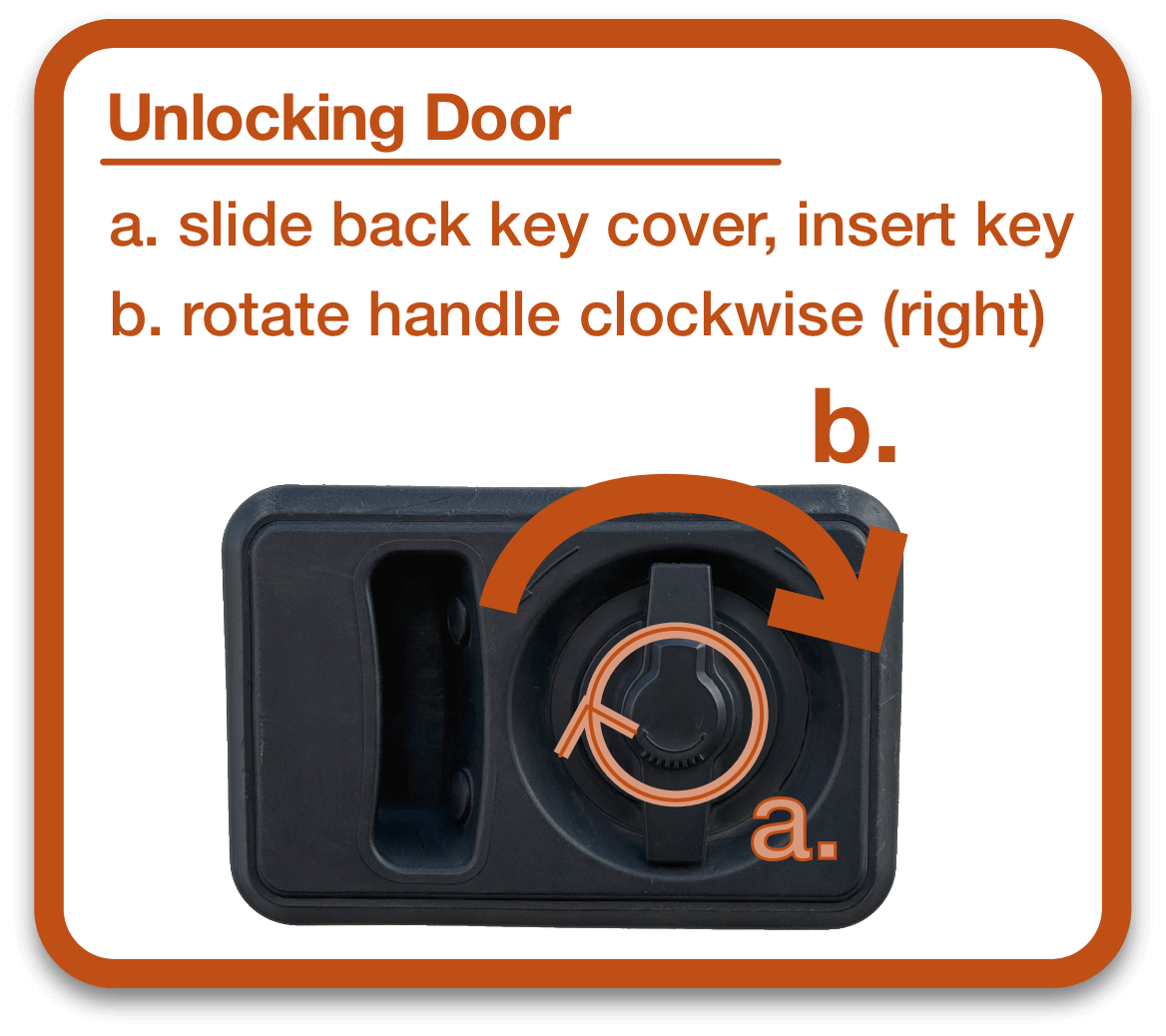

slide back key cover, Insert key and turn clockwise (right) 90°Rotate handle clockwise (right) 90°
Opening Door

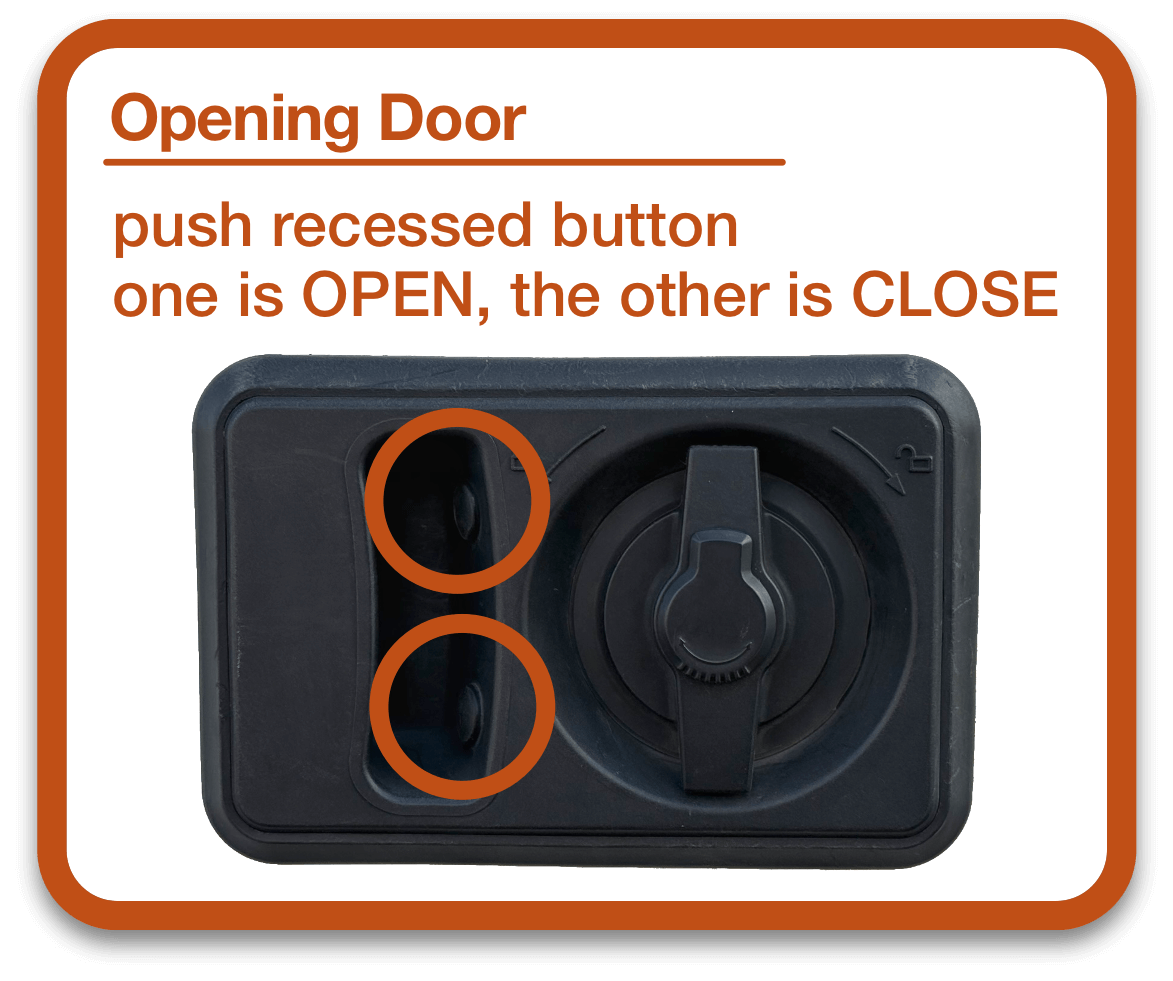

Push small recessed button to open doorEmergency Opening

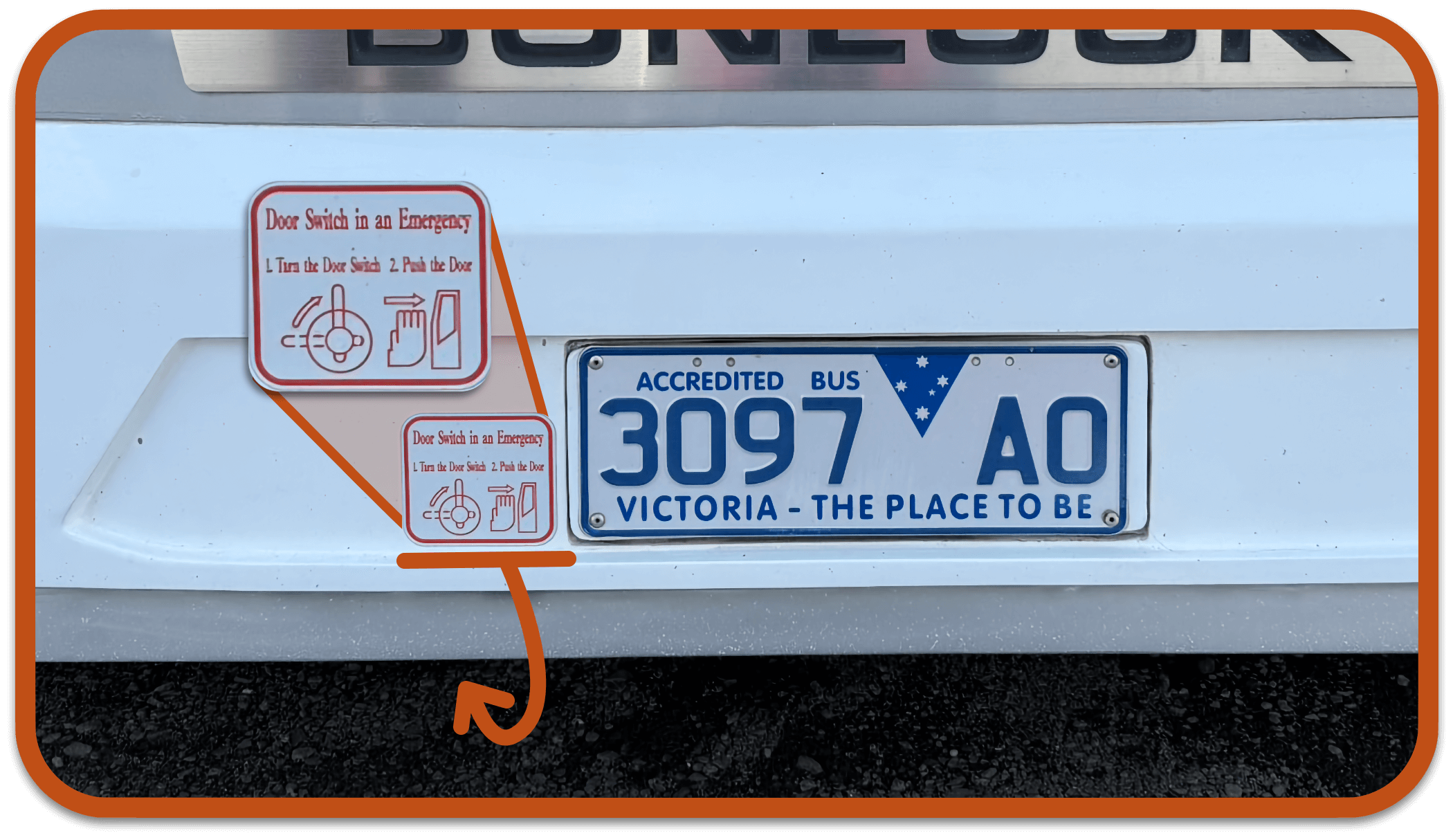

The open close buttons is under the front bumper, below the “Door Switch in an Emergency” sticker.Locate button with your finger and press.
