Panorama buses have several types of isolator switches and possible locations on the bus that you might find the switches.
Use the reference below to familiarise yourself with the possible isolator switch types and locations.

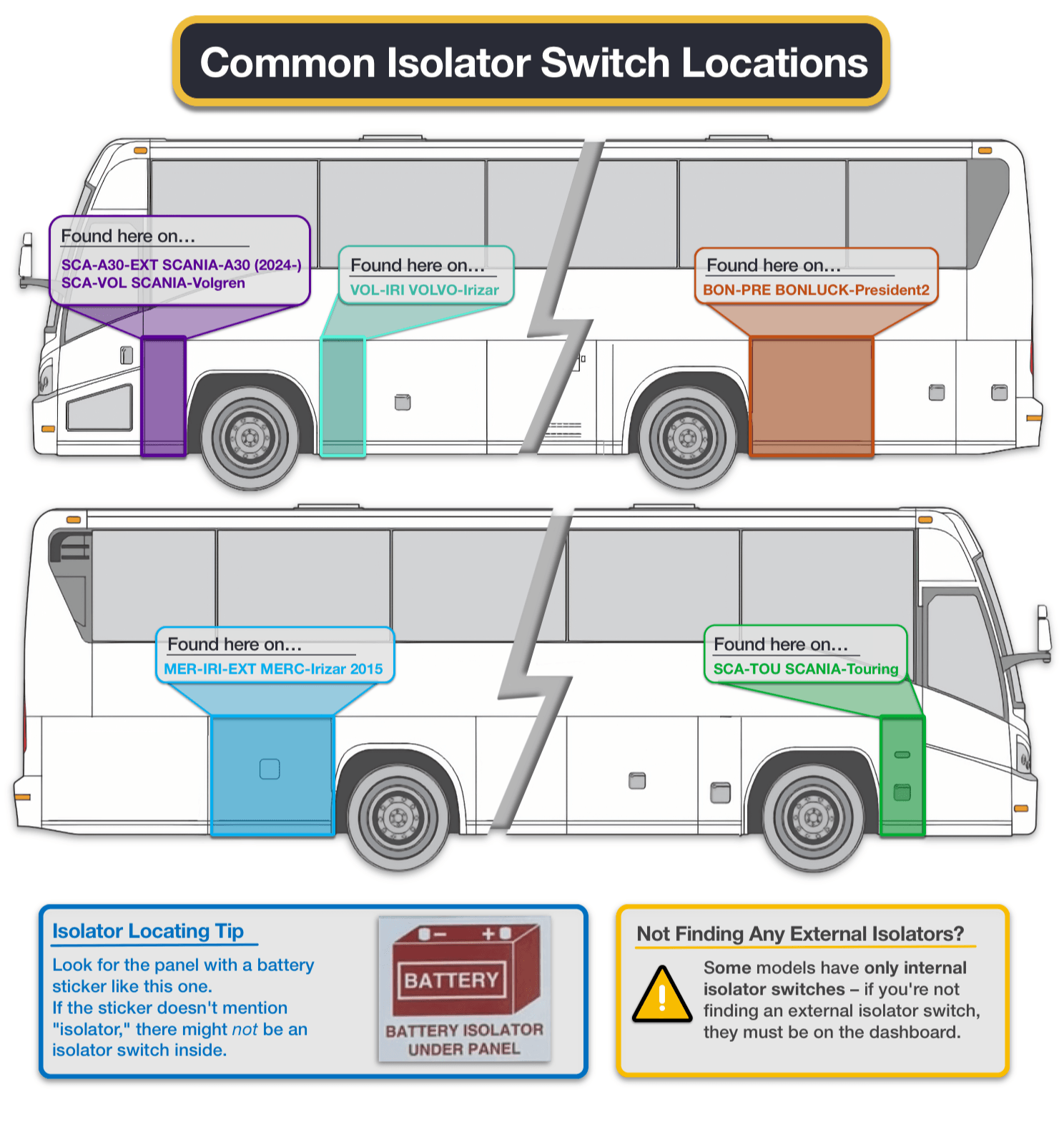

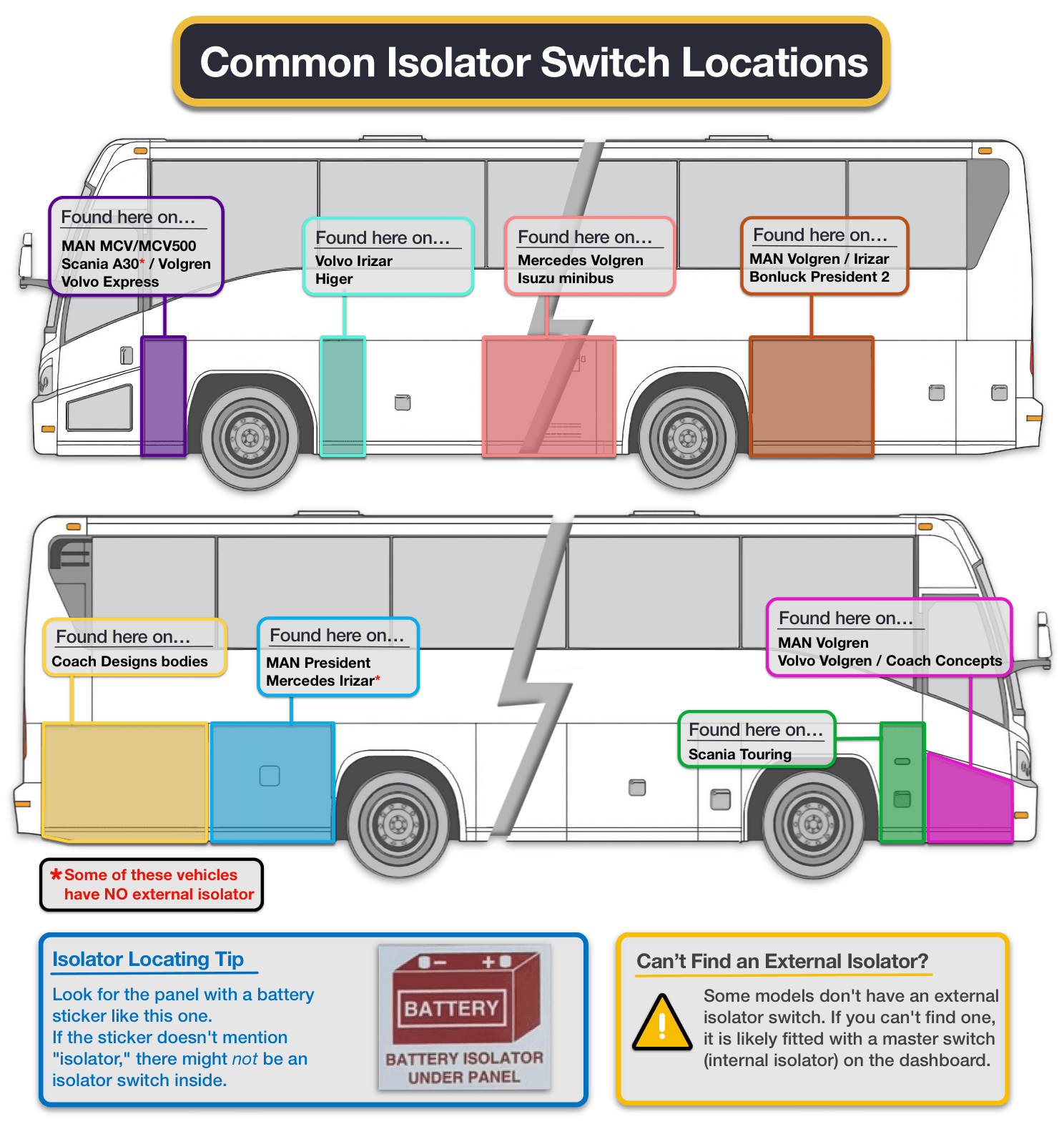

Isolator Switch Locations
All the buses are grouped by combinations of chassis and body, e.g. - C13, C15 etc.
Check your run sheet for your allocated vehicle’s combination number.
Locate the combination number on the diagram below to find the isolator switch locations.
If you don’t see the combination number on the diagram below, the isolator switches may be internal on the dashboard.

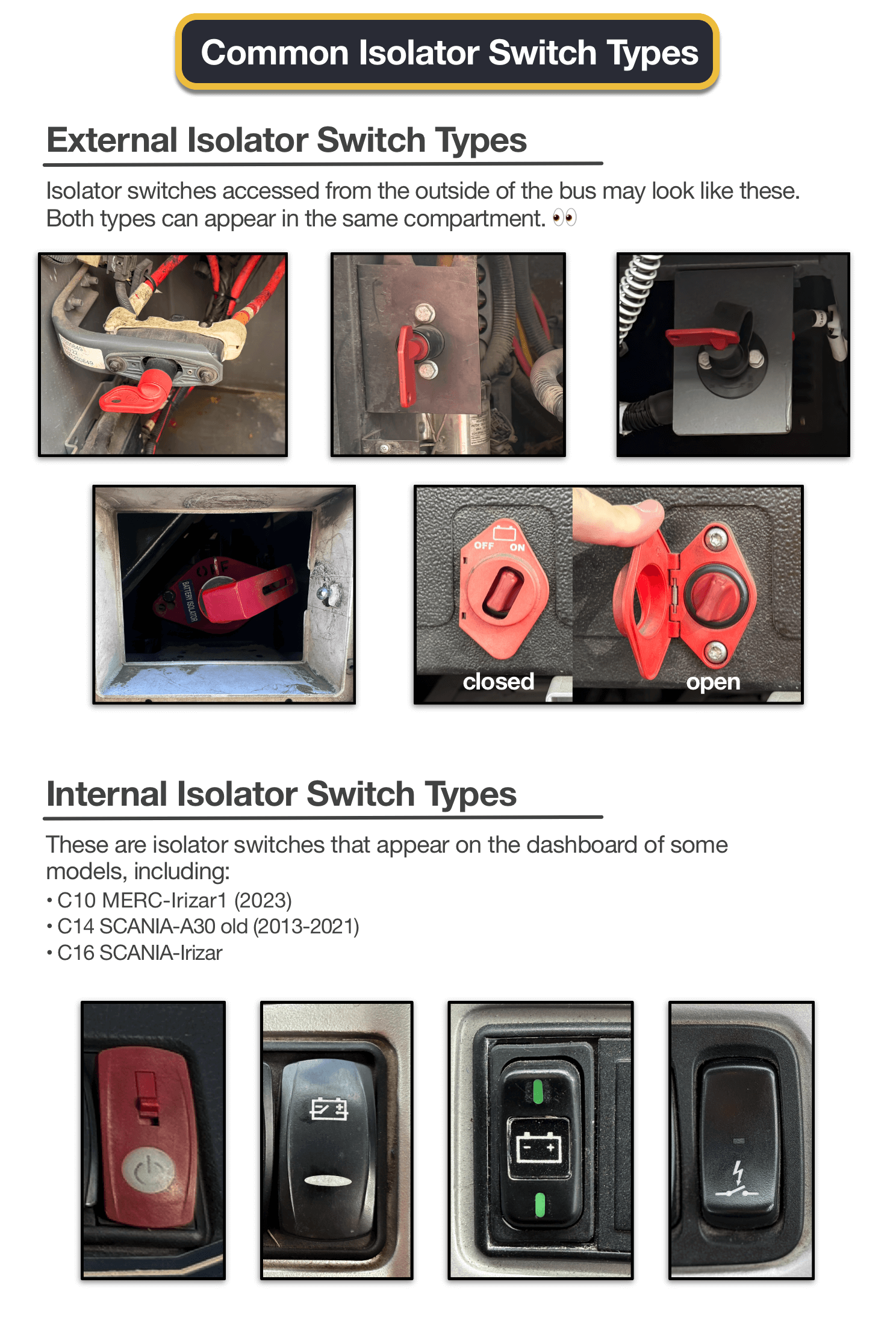

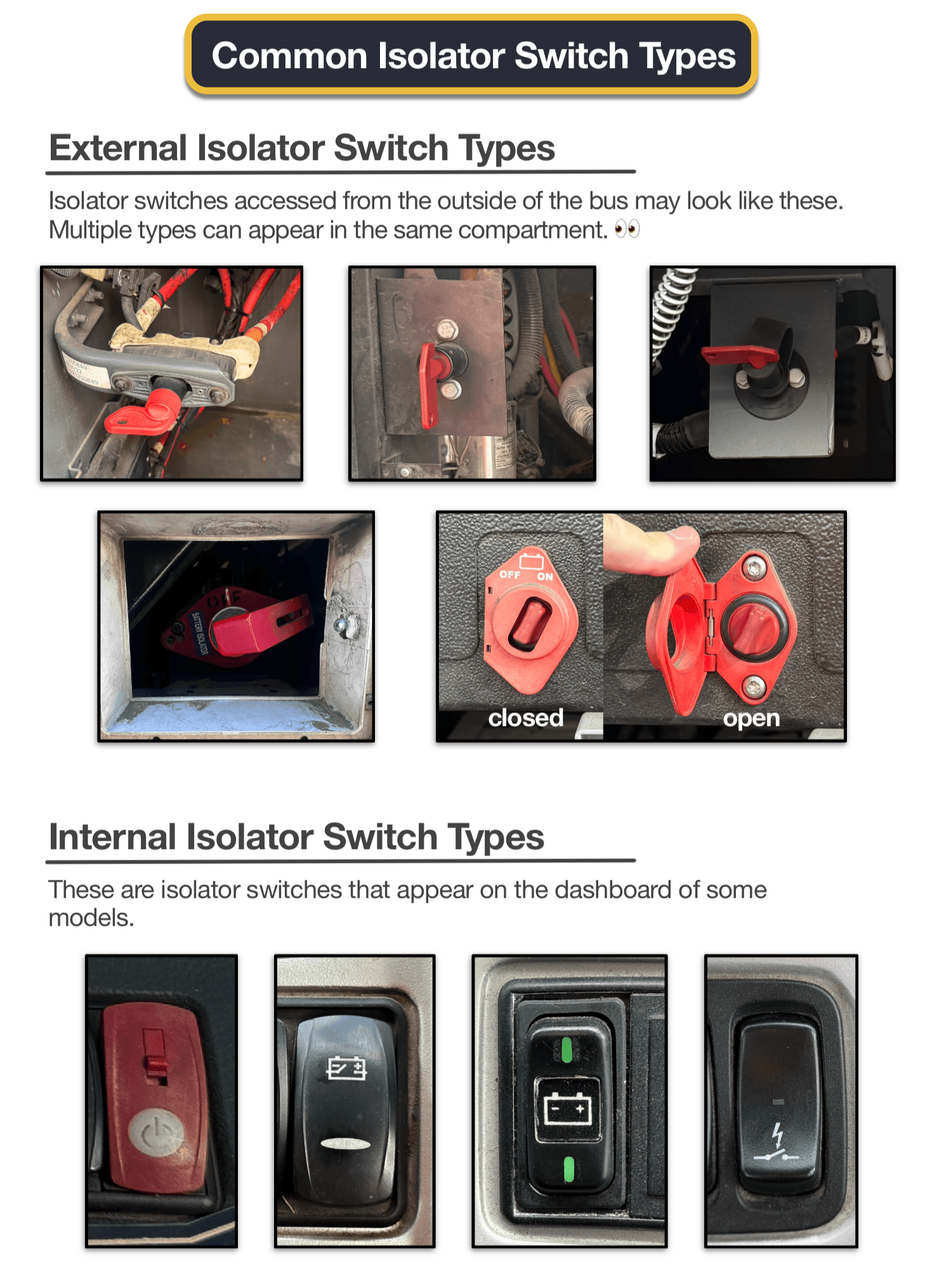

Isolator Switch Types
